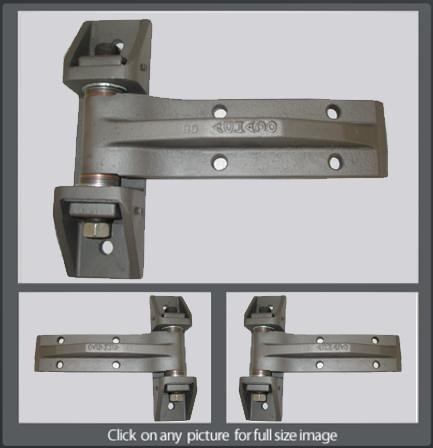

Type H418
Six-way Adjustable “Blast” Hinge
Extra heavy and extra high capacity of H-418 hinge exceeds capabilities of H-412 hinge (see sheet H-3). Patented adjustable features allow door to be adjusted in reestablish perfect alignment and plumb swing. The gusset in cast ductile iron strap, socket head (120,000 psi) pintle bolt and socket head fasteners.
Type H-418 hinge has a standard offset above frame. For flush conditions, shim is provided as an option. Standard composition of blast hinge pintle and strap are ductile iron 60418, exceeding the properties listed in the analysis section. Lifetime lubricated iolite bronze thrust and radial bearings allow minimal opening/closing pressure. Hinges furnished assembled. Standard finish U.S. Prime. Standard weight 19 lbs.
Options
Larger dia. Pintle bolt
Security fasteners (non removable)
Note: hinges can be welded
Cadmium or chrome plating
Ball bearing
5/`6” x 3” x 11” shim or as required.
Ordering Information
Quantity of each hand
For options consult factory or representative
